Bộ Taro M3-M20 | Hand taps and round dies (set of 52 pcs.) HSS-E M3 – M20
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
Sản phẩm chính hãng, giá tốt nhất Vietnam!
Directory
VOLKEL

Bộ Taro M3-M20 | Hand taps and round dies (set of 52 pcs.) HSS-E M3 – M20

Hàng đang trên đường về (Từ 1-2 tuần)
27.946.000₫

Bộ taro tay Voelkel 49251 là bộ dụng cụ taro và ren ngoài cao cấp của VÖLKEL GmbH, được thiết kế cho các công việc gia công ren thủ công trong cơ khí, bảo trì và sửa chữa chuyên nghiệp.

Thông số kỹ thuật chính

  • Bộ gồm: 52 chi tiết
  • Dải ren: M3 – M20
  • Chất liệu:
    • Taro tay: HSS-E (High Speed Steel + Cobalt)
    • Bàn ren tròn: theo tiêu chuẩn DIN
  • Tiêu chuẩn:
    • Taro DIN 352
    • Bàn ren DIN 223 / DIN EN 22568
  • Ứng dụng:
    • Tạo ren trong và ren ngoài bằng tay
    • Dùng cho lỗ suốt và lỗ bít
  • Vật liệu gia công phù hợp:
    • Thép thường
    • Thép hợp kim thấp
    • Vật liệu không mài mòn đến khoảng 900 N/mm²
  • Đóng gói:
    • Hộp kim loại chắc chắn, chuyên dụng

Ưu điểm nổi bật

1. Chất liệu HSS-E cao cấp

HSS-E có bổ sung cobalt giúp:

  • Chịu nhiệt tốt hơn HSS thường
  • Cắt ren mượt hơn
  • Tăng tuổi thọ dụng cụ
  • Hạn chế mẻ lưỡi khi taro vật liệu cứng

Đây là ưu điểm lớn so với các bộ taro phổ thông HSS-G.

2. Bao phủ đầy đủ kích thước thông dụng

Dải M3–M20 đáp ứng hầu hết nhu cầu:

  • Cơ khí chế tạo
  • Bảo trì máy móc
  • Gara ô tô
  • Workshop kỹ thuật
  • Nhà máy sản xuất

Người dùng không cần mua lẻ nhiều kích cỡ.

3. Gia công theo chuẩn DIN Đức

Các taro và bàn ren được sản xuất theo chuẩn DIN nên:

  • Độ chính xác ren cao
  • Ren đều và đẹp
  • Khả năng lắp ghép tốt
  • Độ ổn định cao khi sử dụng lâu dài

4. Dùng được cho cả lỗ suốt và lỗ bít

Bộ taro hỗ trợ:

  • Through holes
  • Blind holes

Giúp linh hoạt trong sửa chữa và gia công thực tế.

5. Bộ “all-in-one” tiện lợi

Toàn bộ kích thước phổ biến được sắp xếp trong hộp kim loại:

  • Gọn gàng
  • Dễ bảo quản
  • Thuận tiện mang đi công trình
  • Giảm thất lạc dụng cụ

6. Phù hợp cho kỹ thuật viên chuyên nghiệp

Bộ 49251 thường được đánh giá là:

  • “Problem solver” cho workshop
  • Bộ taro ren tiêu chuẩn chuyên nghiệp
  • Phù hợp dùng lâu dài trong môi trường công nghiệp



Hand taps and round dies (set of 52 pcs.) HSS-E M 3 – M 20

This tap and die assortment is intended for workshop threading tasks across the size range named in the product name. The set format helps you keep the required tools together for internal threads, external threads, and the related holder work. It suits service departments, mechanical engineering shops, and repair stations.

The M designation identifies metric ISO threads that are standard across general engineering, maintenance, and machine building. HSSE or HSS-E indicates cobalt alloyed high speed steel, which supports hot hardness and wear resistance under more demanding cutting conditions.

Application

  • Use in workshop production, maintenance, and fabrication where the stated thread designation must be matched accurately.
  • Select the tool by the thread system, size, and form stated in the product name before the job begins.
  • Process: manual driving or assisted driving depending on your holder and machine setup
  • Use: thread cutting, re tapping, and thread cleaning depending on condition
  • Support service workshops, toolrooms, plant maintenance, and general mechanical engineering work.

Note Confirm thread designation, holder concept, and workpiece condition before you start the operation.

Benefits

  • One assortment covers both internal and external thread tasks across the named range.
  • Set organization speeds up selection during maintenance and workshop work.
  • Useful for service benches where several common thread sizes must stay ready.
  • A shared case or set structure improves storage control and completeness checks.
Drawbacks
  • A set cannot replace a specialized single tool program for every material and production condition.
  • It is a workshop set, not a replacement for dedicated production tooling optimized around one thread size.

Step by step

  1. Select the required size and decide whether the job needs an internal or external thread tool from the set.
  2. Prepare the hole or outside diameter and secure the workpiece for accurate alignment.
  3. Mount the chosen tap or die in the matching holder from the set.
  4. Start the thread square to the workpiece and keep the holder under controlled manual guidance.
  5. Continue the cut with suitable lubricant and remove chips from the work area as required.
  6. Check the finished thread, clean the tool, and return each component to the set after use.

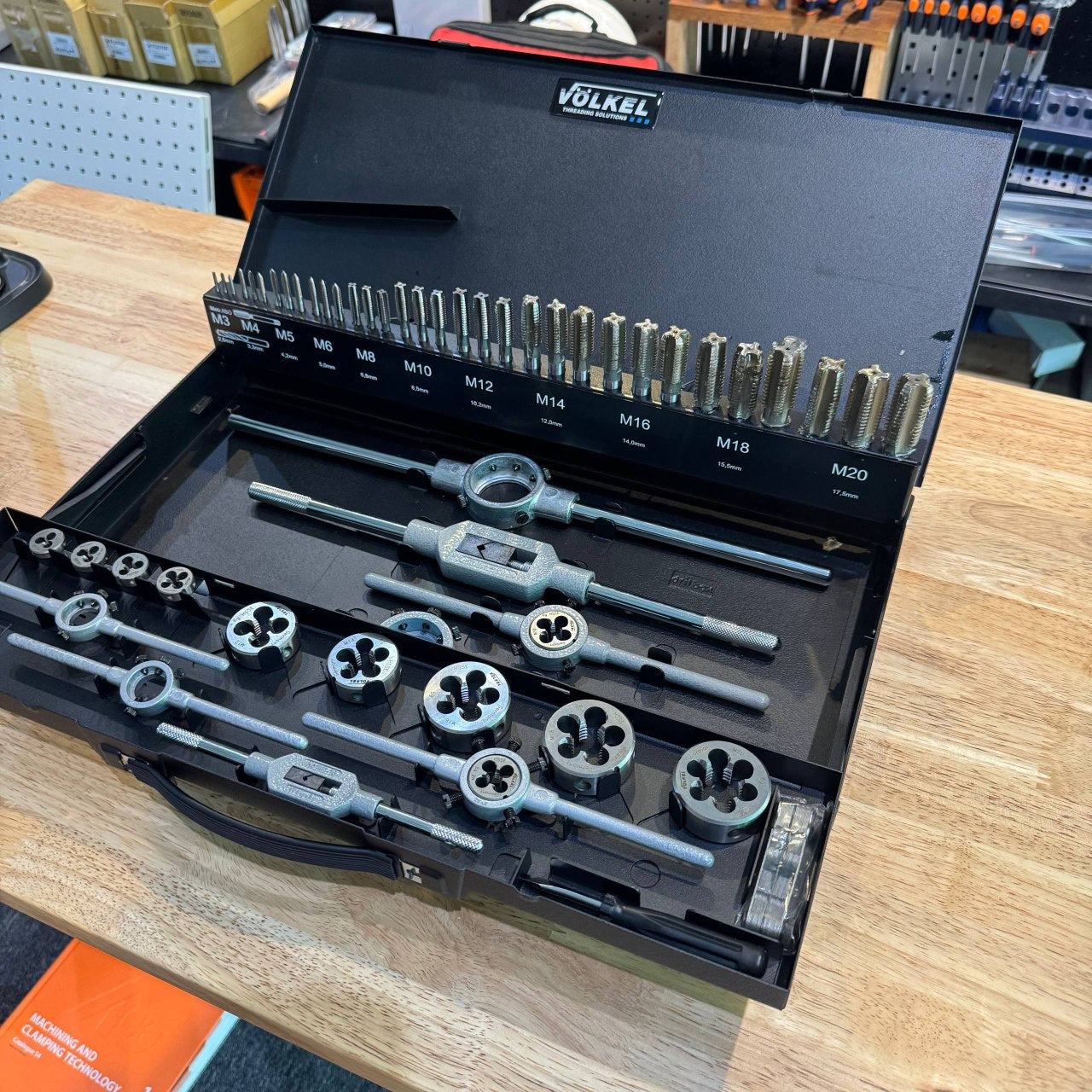

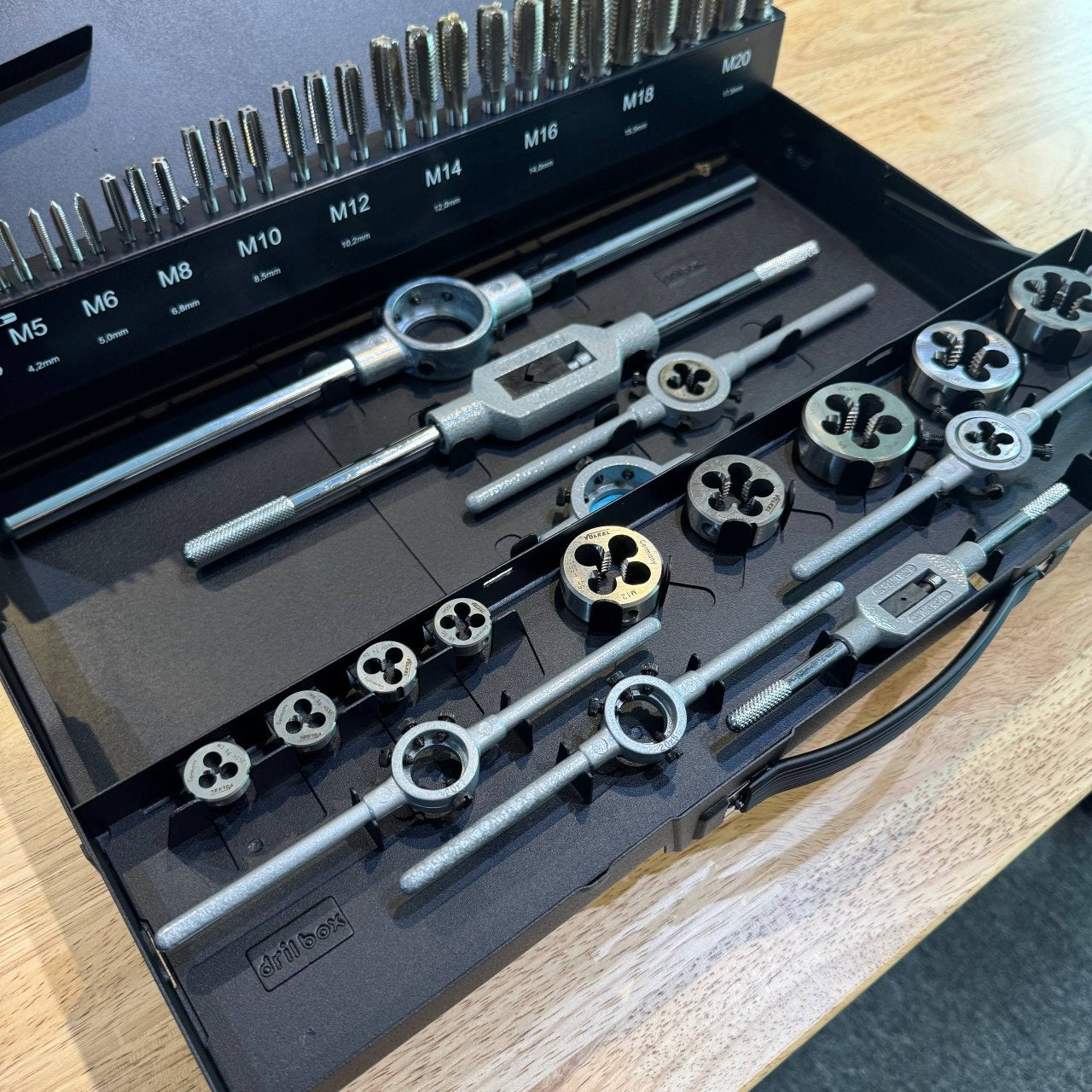

Scope of supply

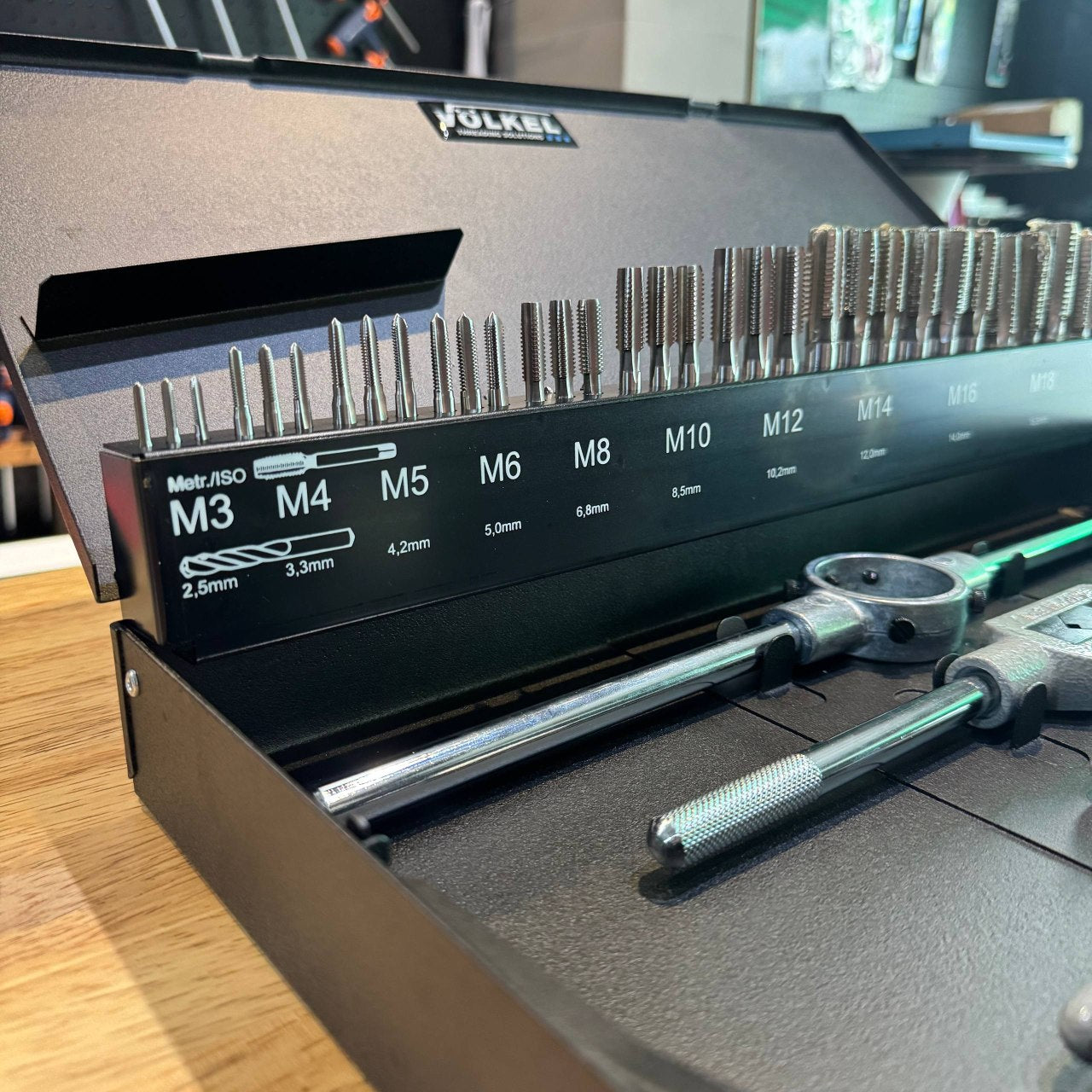

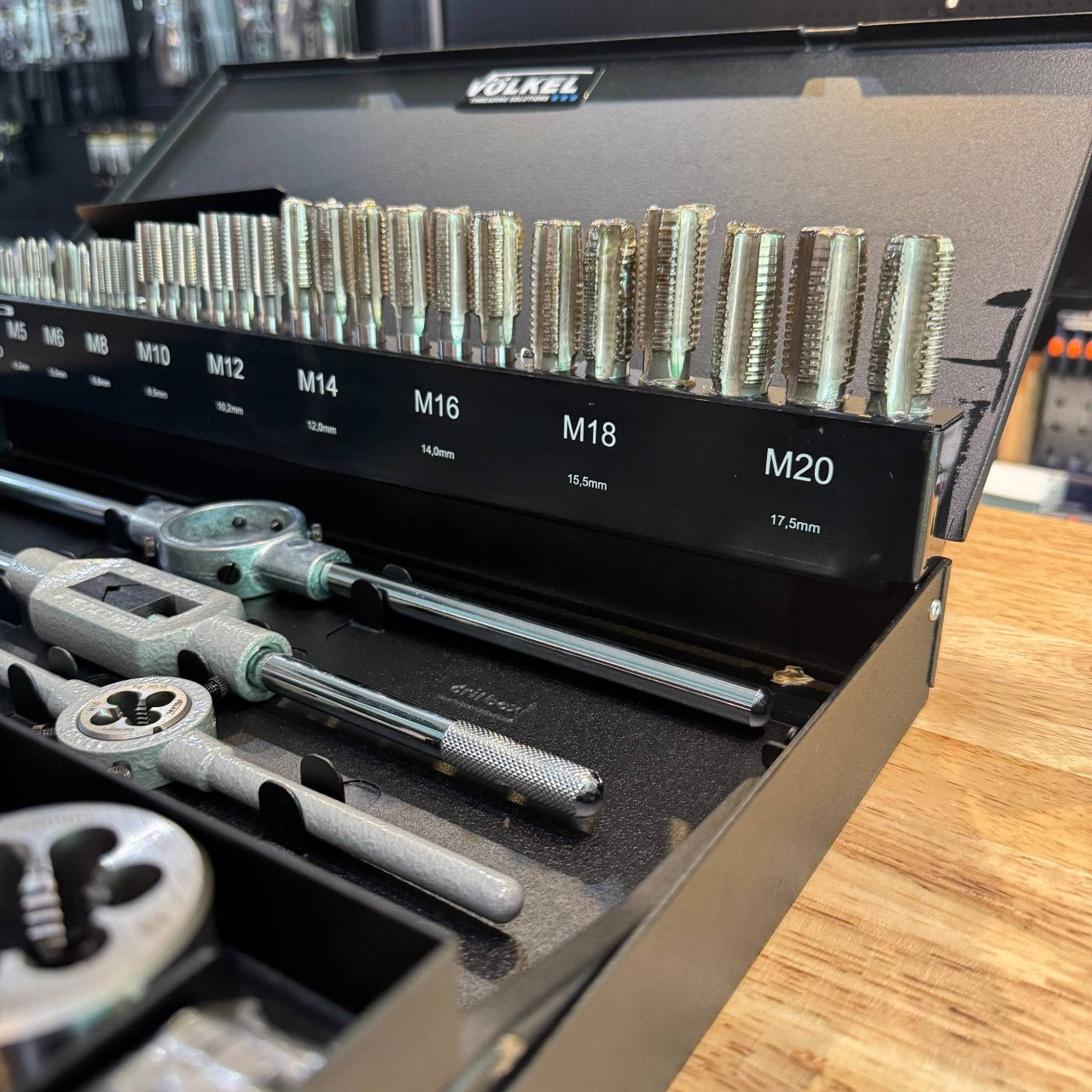

  • 1x HSS-E Hand taps (set of 3 pcs.) M 3 (57326)

  • 1x HSS-E Hand taps (set of 3 pcs.) M 4 (57330)

  • 1x HSS-E Hand taps (set of 3 pcs.) M 5 (57334)

  • 1x HSS-E Hand taps (set of 3 pcs.) M 6 (57338)

  • 1x HSS-E Hand taps (set of 3 pcs.) M 8 (57342)

  • 1x HSS-E Hand taps (set of 3 pcs.) M 10 (57346)

  • 1x HSS-E Hand taps (set of 3 pcs.) M 12 (57350)

  • 1x HSS-E Hand taps (set of 3 pcs.) M 14 (57354)

  • 1x HSS-E Hand taps (set of 3 pcs.) M 16 (57358)

  • 1x HSS-E Hand taps (set of 3 pcs.) M 18 (57362)

  • 1x HSS-E Hand taps (set of 3 pcs.) M 20 (57366)

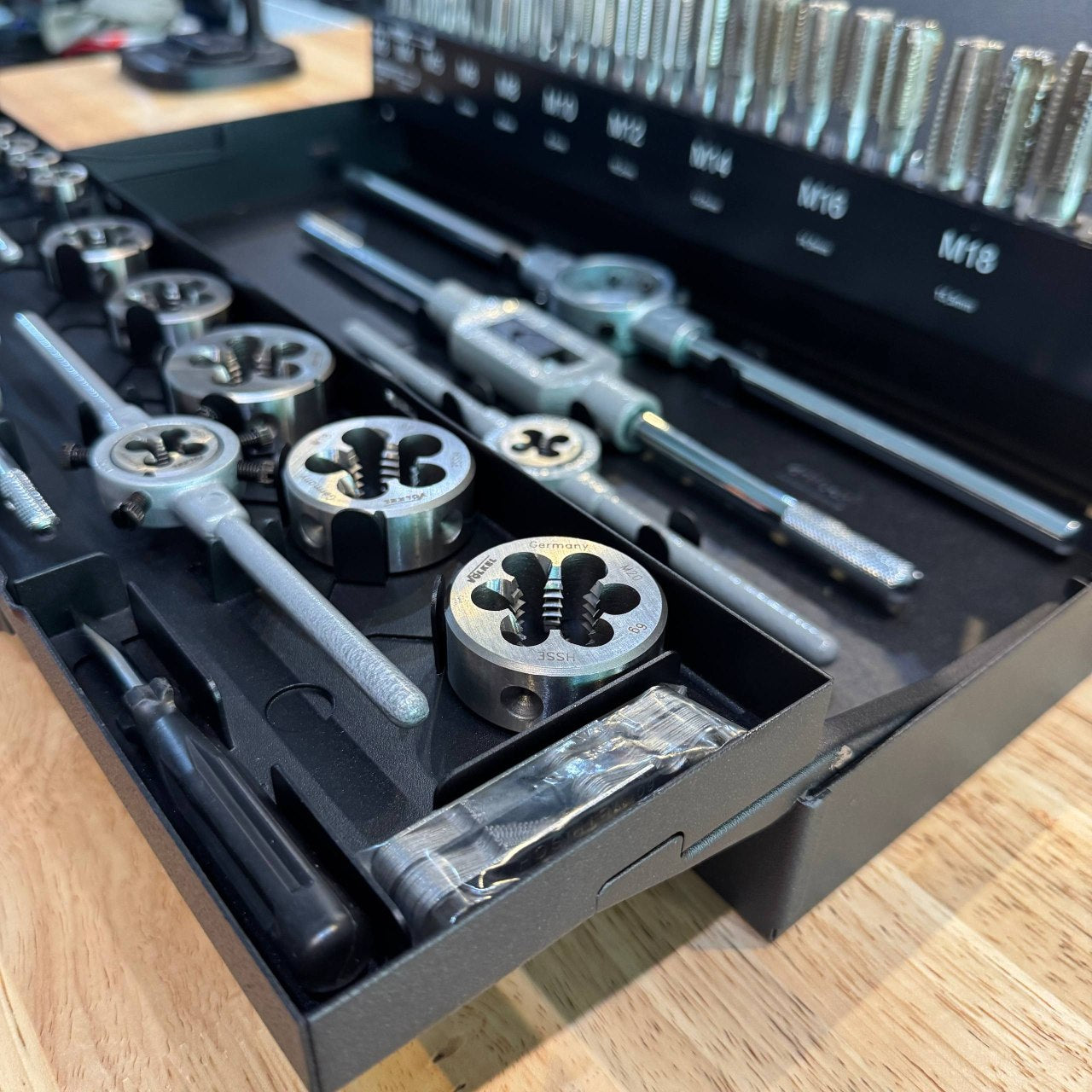

  • 1x HSS-E Round die M 3 (57426)

  • 1x HSS-E Round die M 4 (57430)

  • 1x HSS-E Round die M 5 (57434)

  • 1x HSS-E Round die M 6 (57438)

  • 1x HSS-E Round die M 8 (57442)

  • 1x HSS-E Round die M 10 (57446)

  • 1x HSS-E Round die M 12 (57450)

  • 1x HSS-E Round die M 14 (57454)

  • 1x HSS-E Round die M 16 (57458)

  • 1x HSS-E Round die M 18 (57462)

  • 1x HSS-E Round die M 20 (57466)

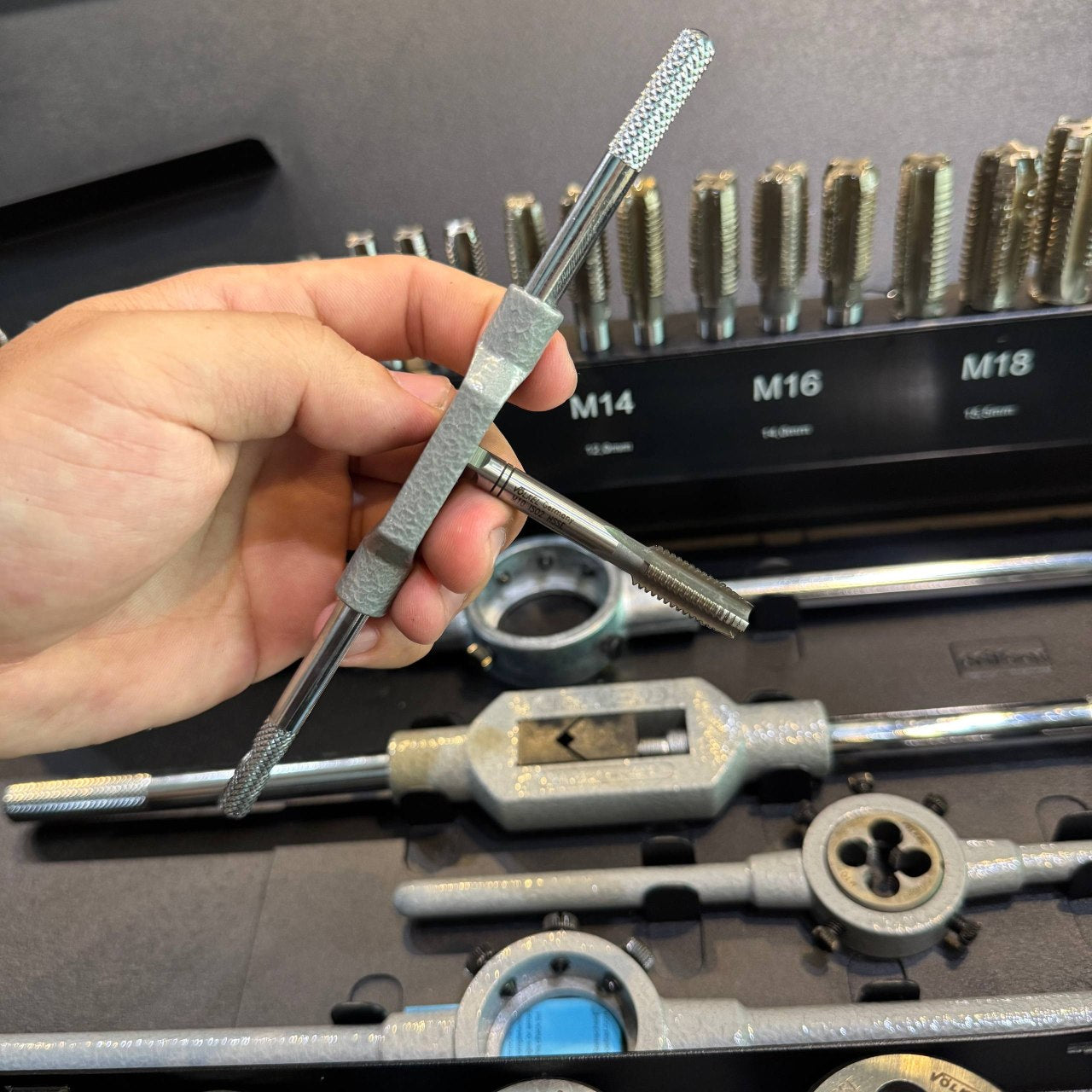

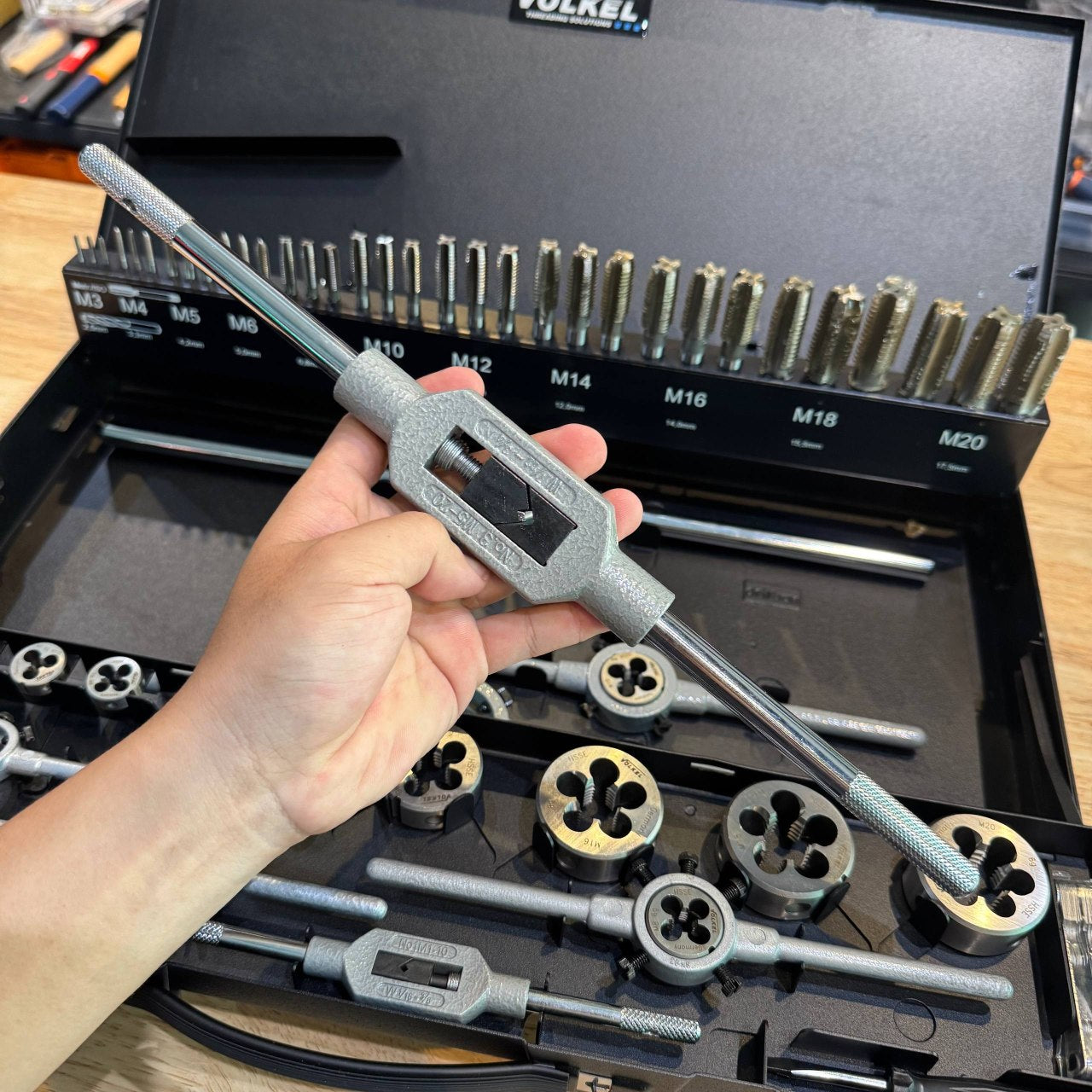

  • 1x Adjustable tap wrench, zinc die cast No. 1 (13010)

  • 1x Adjustable tap wrench, zinc die cast No. 3 (13030)

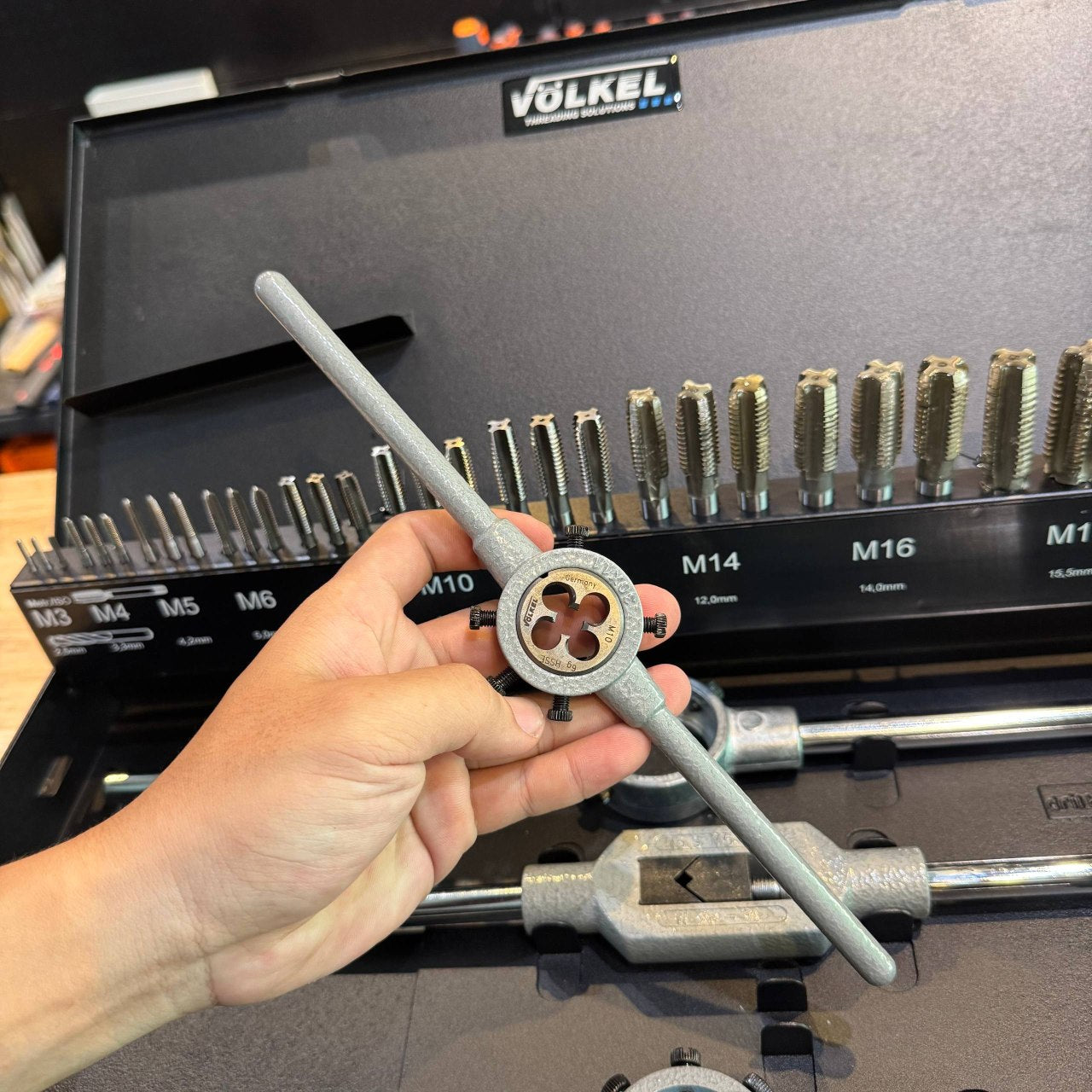

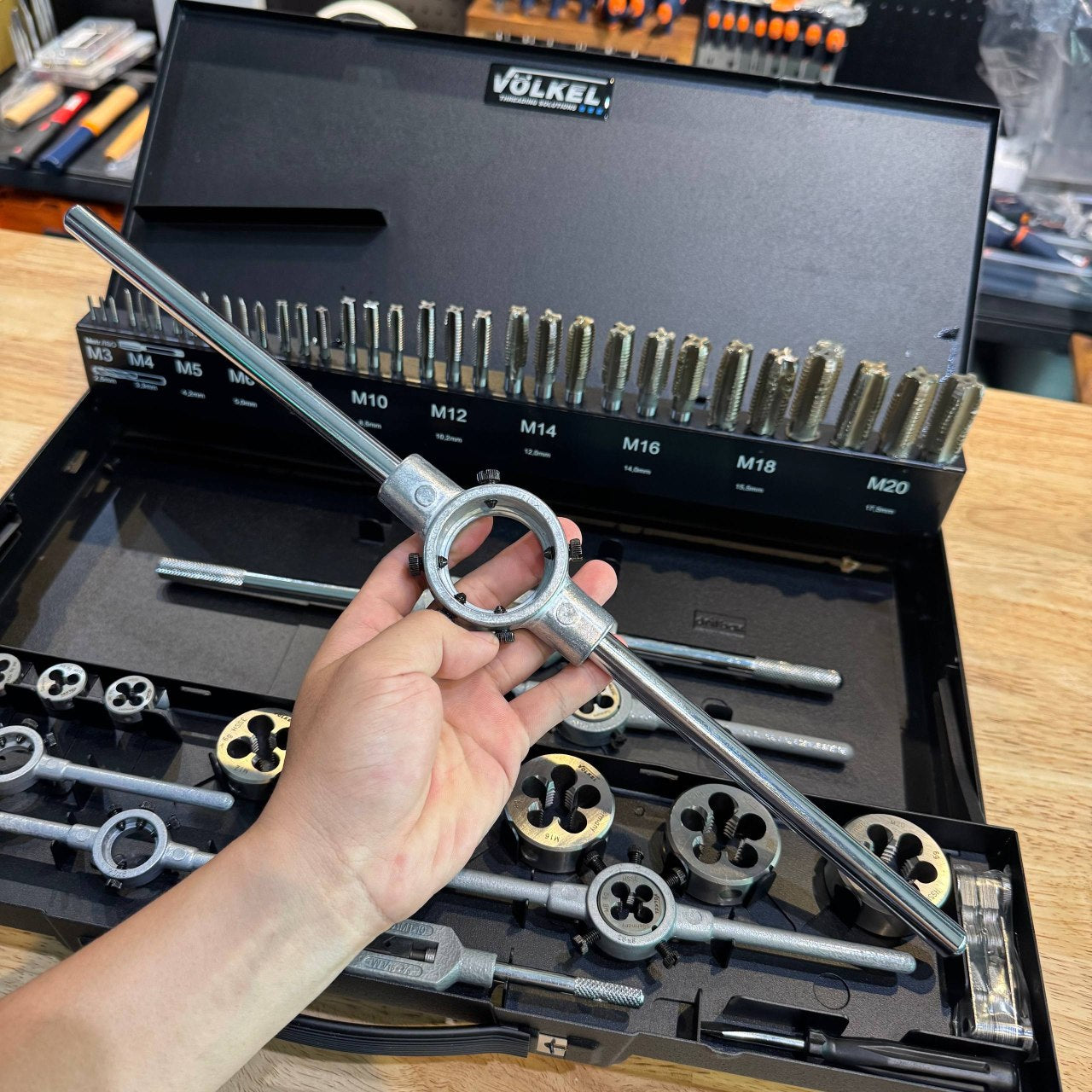

  • 1x Die stock, zinc die cast 20x5 mm (15002)

  • 1x Die stock, zinc die cast 20x7 mm (15003)

  • 1x Die stock, zinc die cast 25x9 mm (15004)

  • 1x Die stock, zinc die cast 30x11 mm (15005)

  • 1x Die stock, zinc die cast 38x14 mm (15007)

  • 1x Die stock, zinc die cast 45x18 mm (15009)

Technical features

  • Product type: Tap and die assortment
  • Thread system: M
  • Tool material: HSS-E
  • Included groups: hand taps, round dies, die stocks, and tap wrenches
Type of thread metric ISO-thread DIN 13
Standard DIN Standard
Material HSS-E
Size Diameter M 3- 20
Packing in drilbox metal case
EAN 4022835492511
Item number 49251
