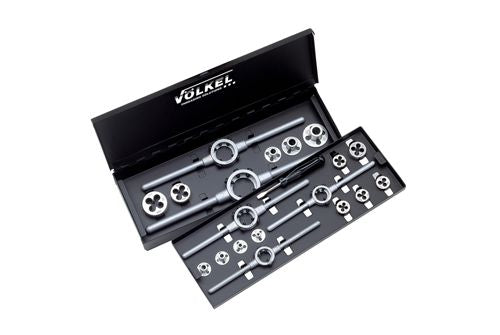

Bộ taro ren tròn P.V.14 (19 chiếc) kèm tay quay và dẫn hướng M3 – M12
- Product SKU: 49599
- Category: All, Best Selling Products, Cutting Tools, Measuring and testing tools and equipment, Measuring tools and equipment, Microscope, magnifying glass, hardness tester, roughness tester, New products, Newest Products, Taro Cape
Bộ taro ren tròn P.V.14 bao gồm 19 chi tiết, kèm theo 7 dẫn hướng cho ren tròn từ M 3 đến M 12. Sản phẩm được làm từ thép HSS theo tiêu chuẩn DIN 223 (DIN EN 22568). Bộ taro này phù hợp cho các ứng dụng thông thường trên vật liệu không mài mòn có độ bền lên đến 800 N/mm², thép không hợp kim và hợp kim thấp. Đây là bộ dụng cụ nhỏ gọn, tiện dụng cho các ứng dụng tiêu chuẩn, bao gồm các đường kính phổ biến nhất trong một hộp đựng bằng kim loại. Bộ sản phẩm cũng bao gồm 5 tay quay taro với các kích thước khác nhau.
| Type of thread | metric ISO-thread DIN 13 |
|---|---|
| Standard | DIN Standard |
| Material | HSS-G |
| Size | Diameter M 3 - 12 |
| Packing | in metal case |
| EAN | 4022835495994 |
| Item number | 49599 |
Application
for general use:
- non abrasive material up to 800 N/mm²
- unalloyed and low alloyed steel
- small, handy set for standard application
- the most popular diameter together in one case
- 7 Guides for round dies
- HSS Round dies acc. to DIN 223 (DIN EN 22568)
Contents:

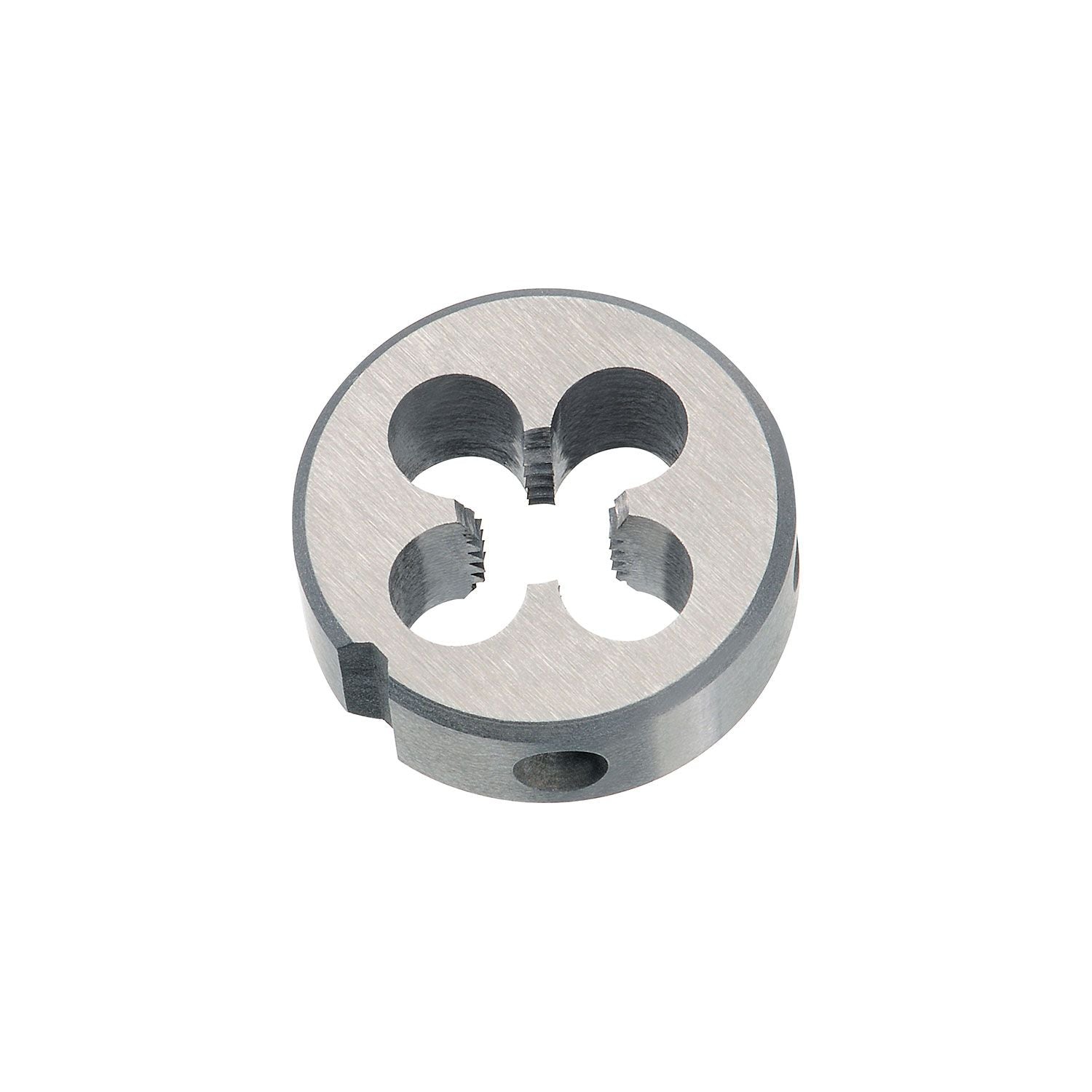

- 1x HSS Round die M 3 (27426)
- 1x HSS Round die M 4 (27430)
- 1x HSS Round die M 5 (27434)
- 1x HSS Round die M 6 (27438)
- 1x HSS Round die M 8 (27442)
- 1x HSS Round die M 10 (27446)
- 1x HSS Round die M 12 (27450)

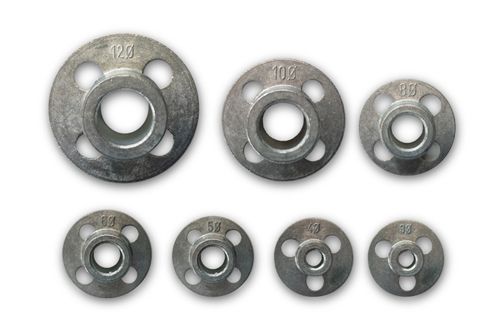

- 1x Guides for round dies (set of 7 pcs.) M 3 - M 12 (15100)

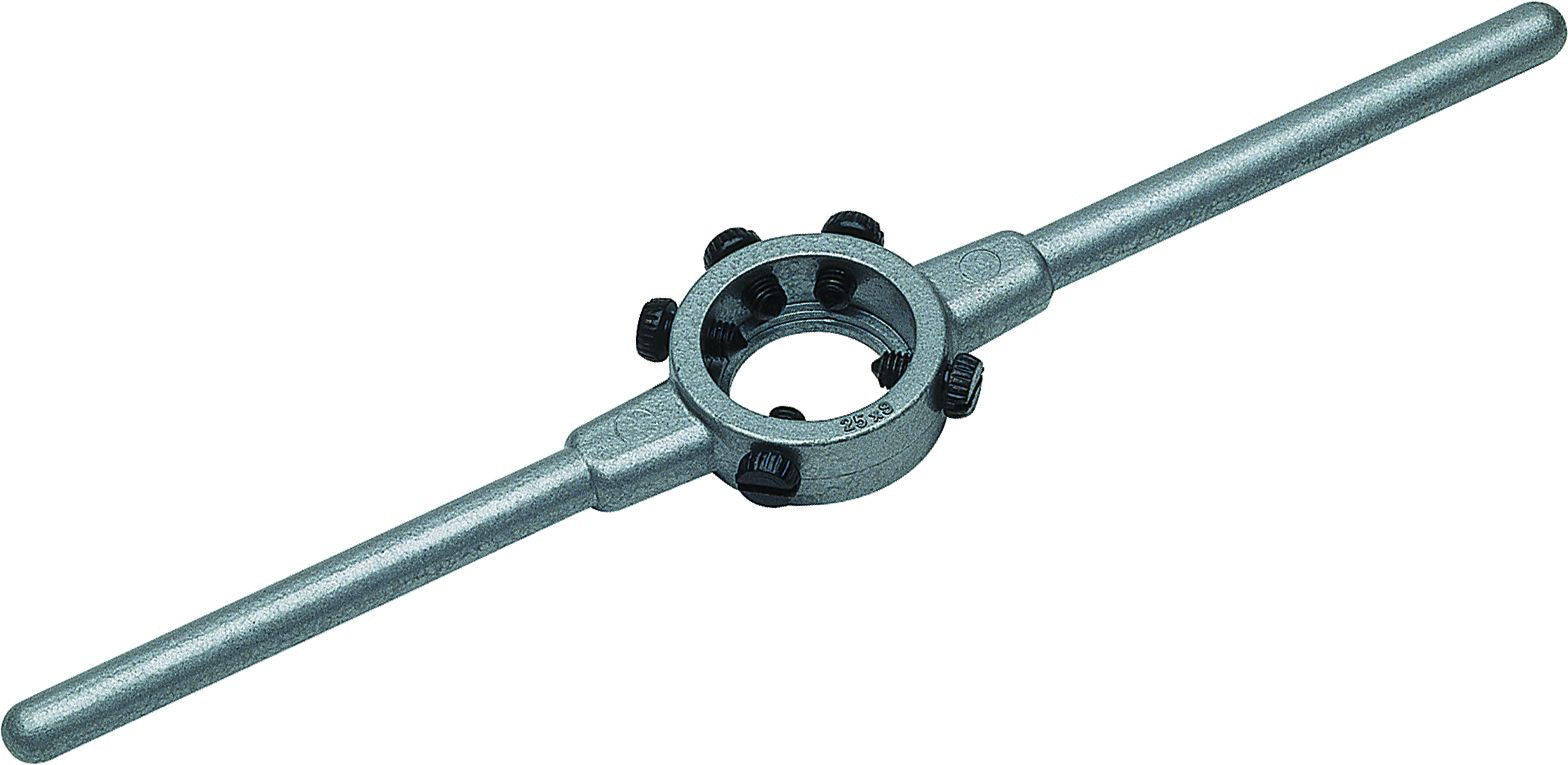

- 1x Die stock, zinc die cast 20x5 mm (15002)
- 1x Die stock, zinc die cast 20x7 mm (15003)
- 1x Die stock, zinc die cast 25x9 mm (15004)
- 1x Die stock, zinc die cast 30x11 mm (15005)
- 1x Die stock, zinc die cast 38x14 mm (15007)
All threading tools, threading tool holder and accessories can also be ordered separately.
